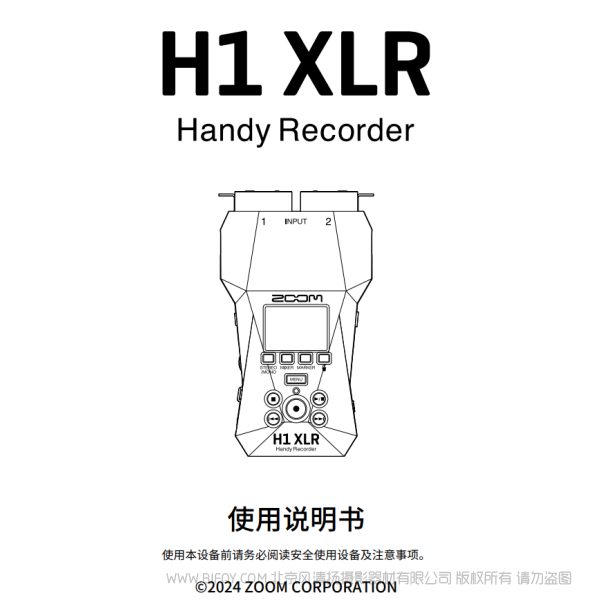

ZOOM H1 XLR Handy Recorder 說明書下載 使用手冊 pdf 免費 操作指南 如何使用 快速上手
The H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas and more.
Specs
INPUTS
| MIC/LINE (mono) | Connectors | 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|---|
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 2.7 kΩ or more | |
| LINE: 1 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 10 mA or less | ||
| Equivalent input noise | MIC: –122 dBu or less (IHF-A) at 150Ω input | |
| LINE: –100 dBu or less (IHF-A) at 600Ω input | ||
| MIC/LINE IN jack | Connector | Stereo mini jack |
| Input impedance | 2 kΩ | |
| Plug-in power | 2.5 V | |
OUTPUTS
| PHONE / LINE OUT jack | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | 20 mW + 20 mW (when 32 Ω load) | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm × 30 mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Recording format | WAV |
|---|---|
| 44.1, 48 or 96 kHz / 32-bit float | |
| Stereo / Mono | |
| BWF and iXML formats supported | |
| Recording media | 4 – 32GB cards compatible with the microSDHC specification |
| 64GB – 1TB cards compatible with the microSDXC specification | |
DISPLAY
| OLED | 128 x 64 |
|---|---|
USB
| Connector | USB Type-C | |
|---|---|---|
| ? Use a USB cable that supports data transfer. | ||
| Audio interface | USB Audio Class 1.0 | |
| Input and output channels | 2 in / 2 out (Stereo) | |
| Sampling frequencies | 44.1, 48 kHz | |
| Bit depths | 16-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
POWER
| 2 AA batteries | Alkaline, Lithium, or Rechargeable NiMH |
|---|---|
| AC adapter | ZOOM AD-17: DC 5 V/1 A |
| ? USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power OFF)
| Alkaline batteries | About 12 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 11 hours |
| Lithium batteries | About 19 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power off, no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power ON)
| Alkaline batteries | About 4 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 3 hours |
| Lithium batteries | About 9 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power on (INPUT 1), no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
| Power consumption | 2.5 W maximum |
|---|---|
| Dimensions | 62.1 mm (W) × 107 mm (D) × 39.3 mm (H) |
| Weight (including batteries) | 164 g |
Note: 0 dBu = 0.775 Vrms
